前言

我们通常在设定了定时任务的频率之后，上线运行之后，有一天我们想要改变这个频率，通常的做法是修改代码，然后发布上线，这对于一个稍微有自我要求的程序员来说显然是不可接受的。那么有没有办法在springboot中实现动态改变这个频率呢，答案显然是有的。此处附上spring官方文档。

策略

我们可以把这个频率（比如con表达式）存储在数据库中，然后去读取这个表达式，从而动态的改变频率。我这里使用的是mysql数据库

依赖

        <dependency><!--添加Mybatis依赖 配置mybatis的一些初始化的东西-->
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>1.3.1</version>
        </dependency>
        <dependency><!-- 添加mybatis依赖 -->
            <groupId>org.mybatis</groupId>
            <artifactId>mybatis</artifactId>
            <version>3.4.5</version>
            <scope>compile</scope>
        </dependency>
        <dependency><!--添加MySql依赖 -->
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>

数据库设计

CREATE TABLE `cron` (
  `id` int primary key auto_increment,
  `cron` varchar(30) NOT NULL,
) ENGINE=InnoDB DEFAULT CHARSET=utf8;

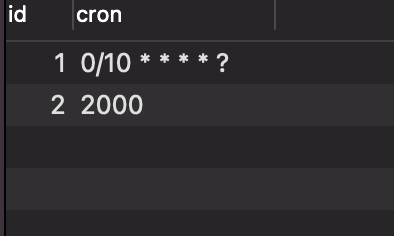

插入两条数据

• 第一条数据用来实现动态cron表达式的方式
• 第二条数据用来实现固定间隔周期的方式

代码部分

package cn.juhe;

import org.apache.ibatis.annotations.Mapper;
import org.apache.ibatis.annotations.Select;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.context.annotation.Configuration;
import org.springframework.scheduling.Trigger;
import org.springframework.scheduling.TriggerContext;
import org.springframework.scheduling.annotation.EnableScheduling;
import org.springframework.scheduling.annotation.SchedulingConfigurer;
import org.springframework.scheduling.config.ScheduledTaskRegistrar;
import org.springframework.scheduling.support.CronTrigger;
import org.springframework.scheduling.support.PeriodicTrigger;
import org.springframework.util.StringUtils;

import java.time.LocalDateTime;
import java.util.Date;
import java.util.concurrent.TimeUnit;

/**
 * @Author: micro cloud fly
 * @Description: 可以动态的从数据库修改定时任务的crontab表达式
 * @Date: Created in 2:10 下午 2020/11/25
 */
@Configuration
@EnableScheduling
public class DynamicScheduleTask implements SchedulingConfigurer {

    @Mapper
    public interface CronMapper {
        @Select("select cron from cron where id=2")
        public String getCron();
    }

    @Autowired      //注入mapper
    @SuppressWarnings("all")
    CronMapper cronMapper;

    /**
     * 配置定时任务.
     */
    @Override
    public void configureTasks(ScheduledTaskRegistrar taskRegistrar) {

        taskRegistrar.addTriggerTask(
                //1.第一个参数是一个实现Runnable接口的实现类
                new MyTask(),
                //2.第二个参数是一个trigger，trigge是一个接口，里面只有一个方法，就是返回一个Date
//                new MyCronTrigger()
                new MyPeriodicTrigger()
        );
    }

    /**
     * cron表达式的实现方式
     */
    private class MyCronTrigger implements Trigger{

        @Override
        public Date nextExecutionTime(TriggerContext triggerContext) {
            return new CronTrigger(cronMapper.getCron()).nextExecutionTime(triggerContext);
        }
    }

    /**
     * 固定频率的实现方式
     */
    private  class MyPeriodicTrigger implements Trigger{

        @Override
        public Date nextExecutionTime(TriggerContext triggerContext) {
            return new PeriodicTrigger(Long.parseLong(cronMapper.getCron()), TimeUnit.MILLISECONDS).nextExecutionTime(triggerContext);
        }
    }

    /**
     * 自身的业务实现类
     */
    private class MyTask implements Runnable{

        @Override
        public void run() {
            System.out.println("开始执行我的定时任务: " + LocalDateTime.now());
        }
    }

}

补充

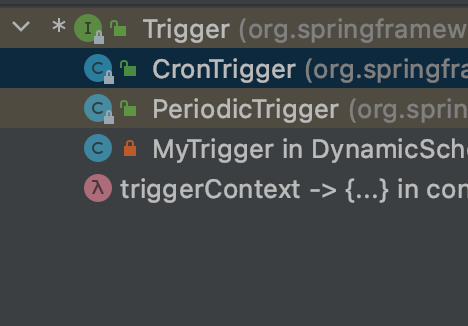

通过源码可以发现，Trigger接口有两个默认的实现

因此，我的代码里面实现了两种方式。

附录，spring官方文档

@Target(value=TYPE)
 @Retention(value=RUNTIME)
 @Import(value=SchedulingConfiguration.class)
 @Documented
public @interface EnableScheduling

Enables Spring’s scheduled task execution capability, similar to functionality found in Spring’s task:* XML namespace. To be used on @Configuration classes as follows:

 @Configuration
 @EnableScheduling
 public class AppConfig {

     // various @Bean definitions
 }

This enables detection of @Scheduled annotations on any Spring-managed bean in the container. For example, given a class MyTask

 package com.myco.tasks;

 public class MyTask {

     @Scheduled(fixedRate=1000)
     public void work() {
         // task execution logic
     }
 }

the following configuration would ensure that MyTask.work() is called once every 1000 ms:

 @Configuration
 @EnableScheduling
 public class AppConfig {

     @Bean
     public MyTask task() {
         return new MyTask();
     }
 }

Alternatively, if MyTask were annotated with @Component , the following configuration would ensure that its @Scheduled method is invoked at the desired interval:

 @Configuration
 @EnableScheduling
 @ComponentScan(basePackages="com.myco.tasks")
 public class AppConfig {
 }

Methods annotated with @Scheduled may even be declared directly within
@Configuration classes:

 @Configuration
 @EnableScheduling
 public class AppConfig {

     @Scheduled(fixedRate=1000)
     public void work() {
         // task execution logic
     }
 }

By default, will be searching for an associated scheduler definition: either a unique TaskScheduler bean in the context, or a TaskScheduler bean named “taskScheduler” otherwise; the same lookup will also be performed for a ScheduledExecutorService bean. If neither of the two is resolvable, a local single-threaded default scheduler will be created and used within the registrar.

When more control is desired, a @Configuration class may implement SchedulingConfigurer. This allows access to the underlying ScheduledTaskRegistrar instance. For example, the following example demonstrates how to customize the Executor used to execute scheduled tasks:

 @Configuration
 @EnableScheduling
 public class AppConfig implements SchedulingConfigurer {

     @Override
     public void configureTasks(ScheduledTaskRegistrar taskRegistrar) {
         taskRegistrar.setScheduler(taskExecutor());
     }

     @Bean(destroyMethod="shutdown")
     public Executor taskExecutor() {
         return Executors.newScheduledThreadPool(100);
     }
 }

Note in the example above the use of @Bean(destroyMethod=“shutdown”). This ensures that the task executor is properly shut down when the Spring application context itself is closed.

Implementing SchedulingConfigurer also allows for fine-grained control over task registration via the ScheduledTaskRegistrar. For example, the following configures the execution of a particular bean method per a custom Trigger implementation:

 @Configuration
 @EnableScheduling
 public class AppConfig implements SchedulingConfigurer {

     @Override
     public void configureTasks(ScheduledTaskRegistrar taskRegistrar) {
         taskRegistrar.setScheduler(taskScheduler());
         taskRegistrar.addTriggerTask(
             new Runnable() {
                 public void run() {
                     myTask().work();
                 }
             },
             new CustomTrigger()
         );
     }

     @Bean(destroyMethod="shutdown")
     public Executor taskScheduler() {
         return Executors.newScheduledThreadPool(42);
     }

     @Bean
     public MyTask myTask() {
         return new MyTask();
     }
 }
